High Gain PtP 5GHz 29dBi 2x2 Mimo Wifi Antenna For WISP Base Station

Brand Name : XJS

Model Number : TDD-4865-29

Certification : ROHS CE

Place of Origin : Guangdong, China

MOQ : 2

Price : $56~60/piece

Payment Terms : Western Union, L/C, T/T

Supply Ability : 3000 pcs per month

Delivery Time : 5~15 work days

Packaging Details : carton packaging, 45*45*21cm/pc, 91.5*46*44.5cm/4pcs

Frequency : 4800-6500MHz

Gain : 29dBi

H Beamwidth : 6.5°

V Beamwidth : 6.5°

Polarization : ±45°

F/B Ratio : ≥30dB

Dimensions : 420*420*120 mm

Max. Power : 50W

Lightning Protection : Dc Ground

Contact Now

5 GHz 29dBi Long Range WiFi 2×2 MIMO Dish Antenna

This is a High Gain PtP Antenna Dual Polarized 2x2 MIMO Parabolic Dish Antennas

It is a perfect match for 802.11a MIMO access points and bridges. It also supports the new 6.2 GHz and 6.4 GHz radios now available. Both ports support 4.8 GHz - 6.5 GHz operation.

Features

Expanded Coverage: 4800 MHz to 6500 MHz
2 ports, Suits for Radio like RocketM5, Mimosa C5c
Cross Polarized, ±45° Polarization (Polarization Diversity)
All-Weather Outdoor Operation
MIMO Applications
5 GHz 802.11a
Wi-Fi Hotspots
WISP Base Station
WiMAX

Electrical Specifications

Frequency Range	4800-6500 MHz
Gain (dBi)	29 dBi
Horizontal Beamwidth	6.5°
Vertical Beamwidth	6.5°
VSWR	<1.8
Polarization	±45°
F/B Ratio	≥30 dB
Impedance	50Ω

Mechanical Specifications

Connector	Customized
Dimensions	420420120 mm
Weight (Kg)	20kg/4pcs
Lightning Protection	Dc Ground
Rated Wind Speed	126/ms
Mounting Type	Pole Mount
Suitable pole diameter	Ф30-80mm

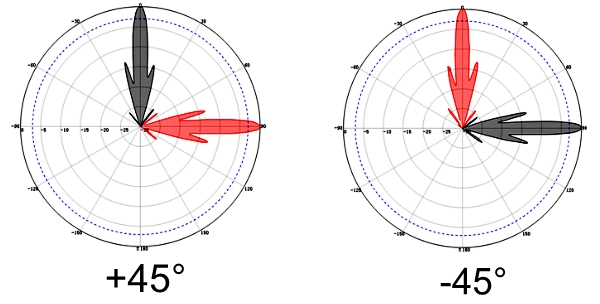

RF Antenna Patterns

High Gain PtP 5GHz 29dBi 2x2 Mimo Wifi Antenna For WISP Base Station

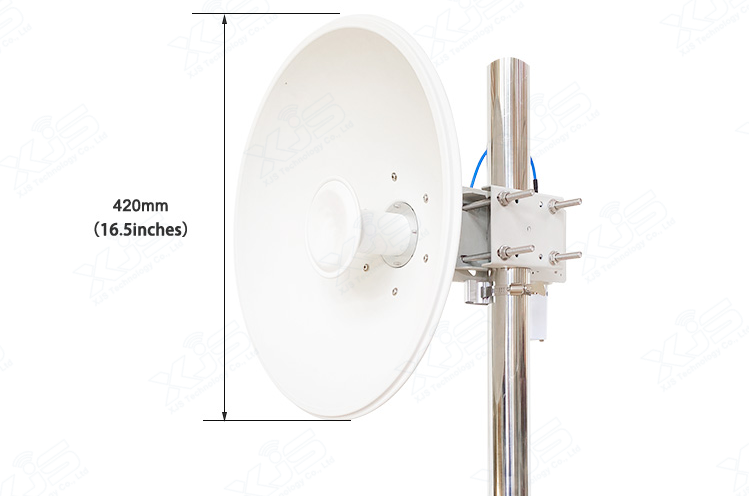

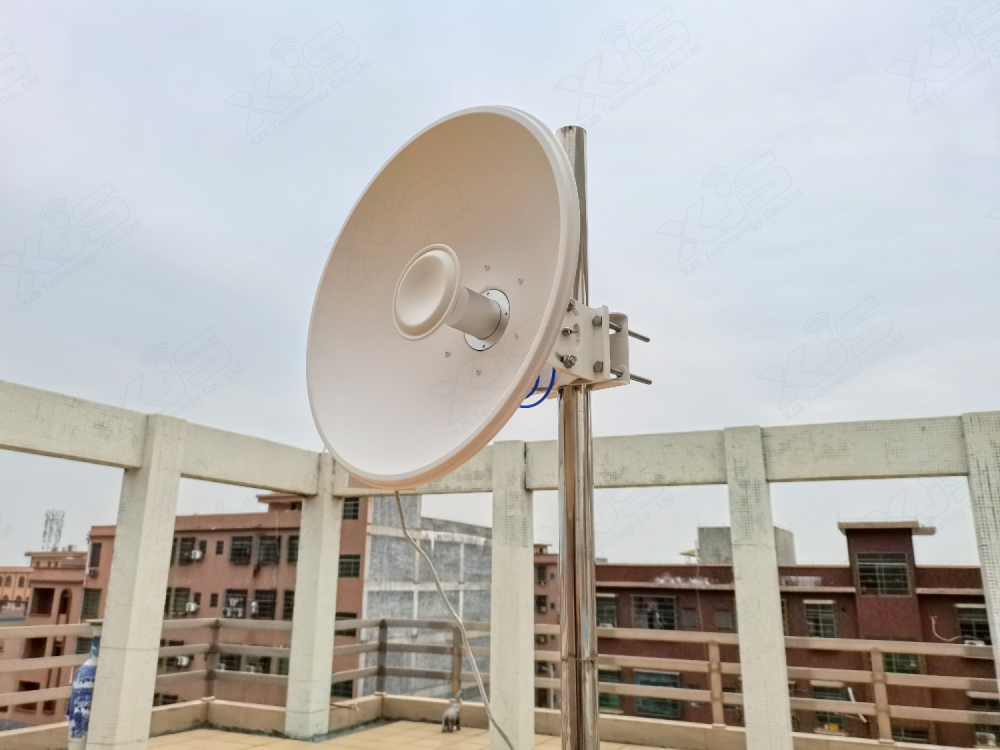

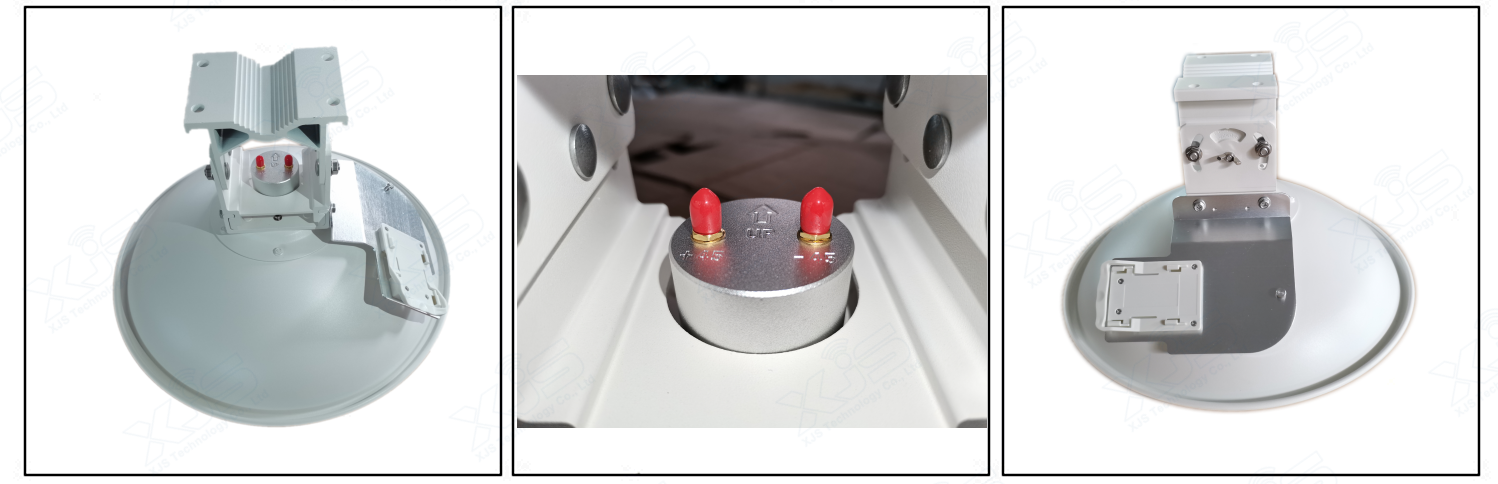

Details

High Gain PtP 5GHz 29dBi 2x2 Mimo Wifi Antenna For WISP Base Station

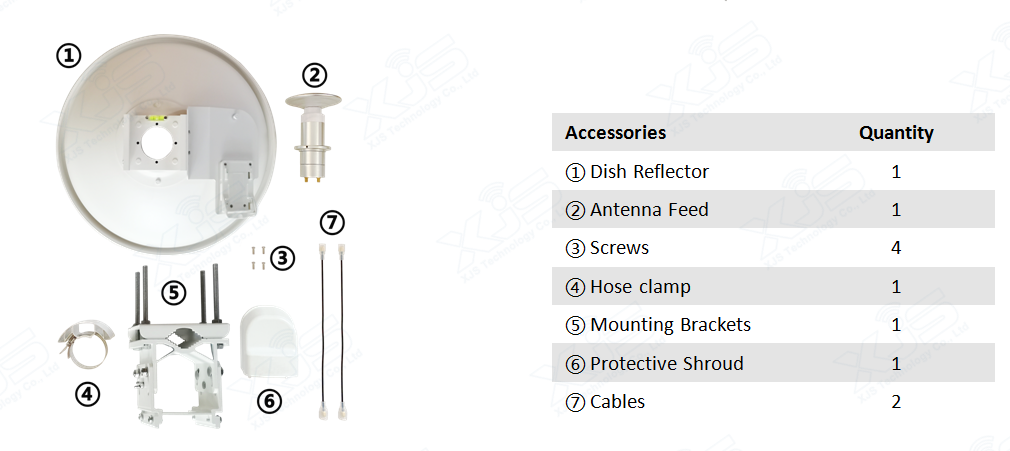

Package Included

High Gain PtP 5GHz 29dBi 2x2 Mimo Wifi Antenna For WISP Base Station

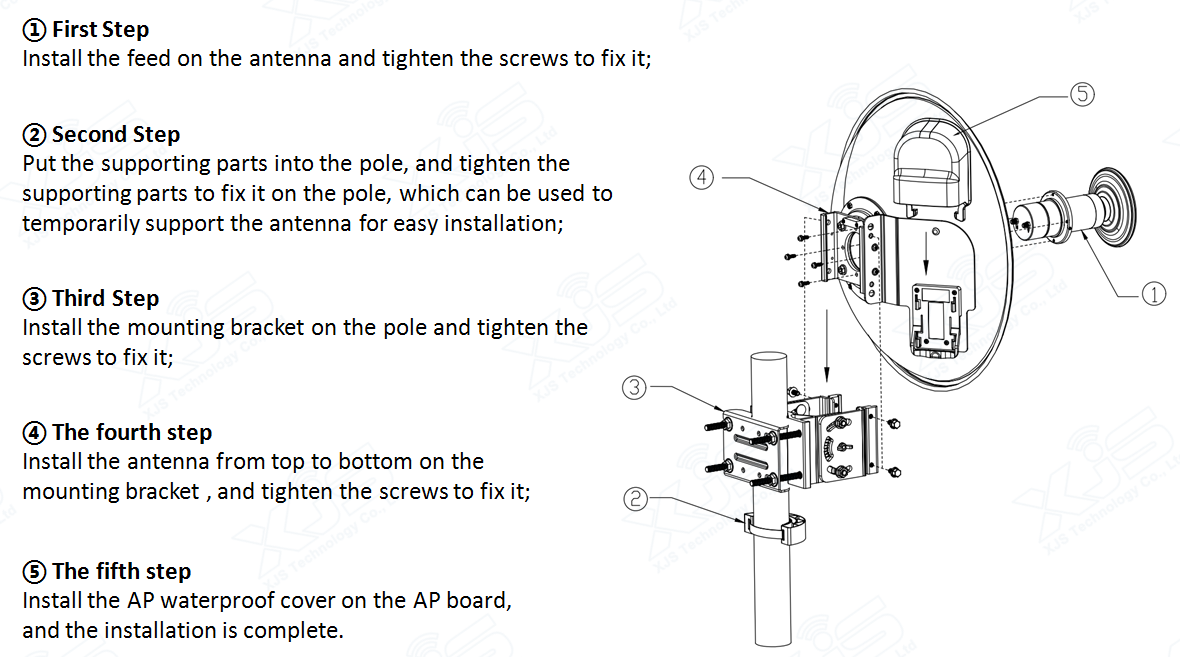

Installation Guide

High Gain PtP 5GHz 29dBi 2x2 Mimo Wifi Antenna For WISP Base Station
