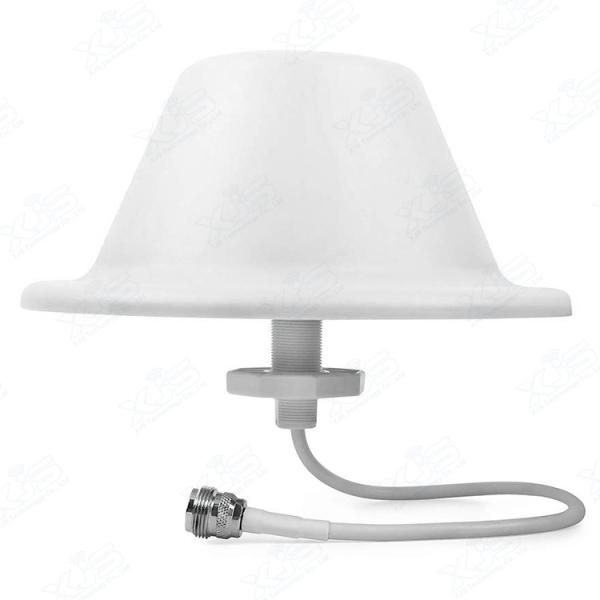

3dBi 5dBi DAS RFID GSM WiFi Antenna Indoor Dome Omni Ceiling Antenna 185*90mm

Brand Name : XJS

Model Number : TQC-0627-5

Certification : ROHS CE

Place of Origin : Guangdong, China

MOQ : 20

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Freq. : 698-2700MHz

Gain : 5dBi 3dBi

VSWR : ≤ 1.7

Polarization : Vertical

H Beamwidth : 360°

V Beamwidth : 60°

Connector Type : N-K or Customized

Dimensions : Φ 185*90mm

Input Impedance : 50 Ω

Maximum Power : 50 W

Weight : 0.6 kg

Contact Now

2G 3G 4G LTE GSM WiFi RFID 698-2700MHz Indoor dome omni ceiling Antenna For Communication

This is high performance omni directional ceiling antenna specifically designed for indoor wireless networks such as DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area. The Multi-Band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of indoor wireless applications where wide coverage is desired.

Applications:
• Full Band (698 – 2700 MHz) Broadband
• 2G/3G/4G and WLAN systems
• Omni-directional antenna broadcasts signal in all directions
• 3 dBi Gain

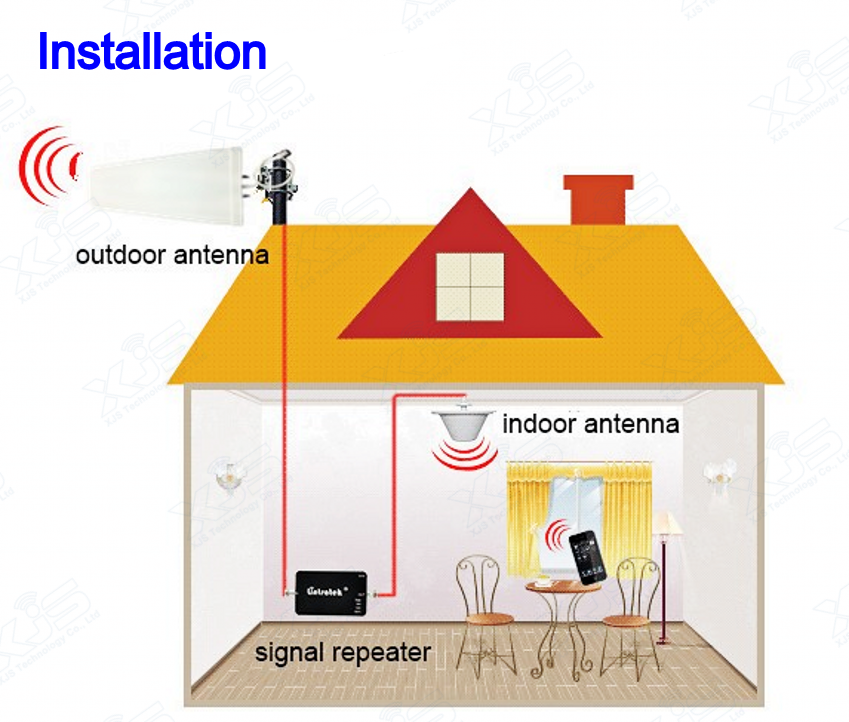

• Mounts to ceiling
• Easy to install

Electrical Specifications

Frequency Range	698-960	1700-2700
Gain (dBi)	3 dBi	5 dBi
Horizontal Beamwidth	360°
Vertical Beamwidth	60°
VSWR	<1.5
Polarization	Vertical
Impedance	50Ω

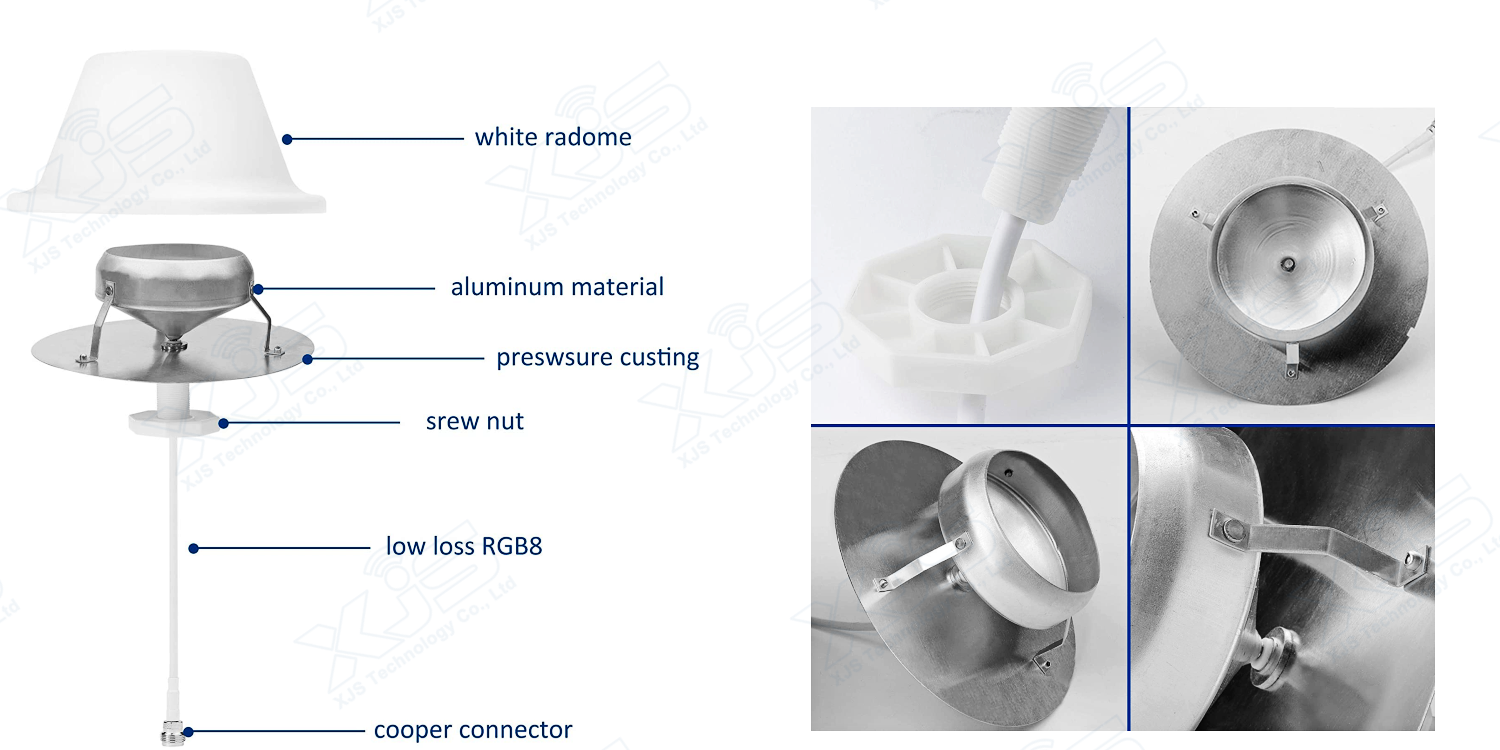

Mechanical Specifications

Connector	Customized
Dimensions	Φ 185*90mm
Weight (Kg)	0.3 kg
Lightning Protection	Dc Ground

Radiation Patterns
